Conventional Mist Coolant System

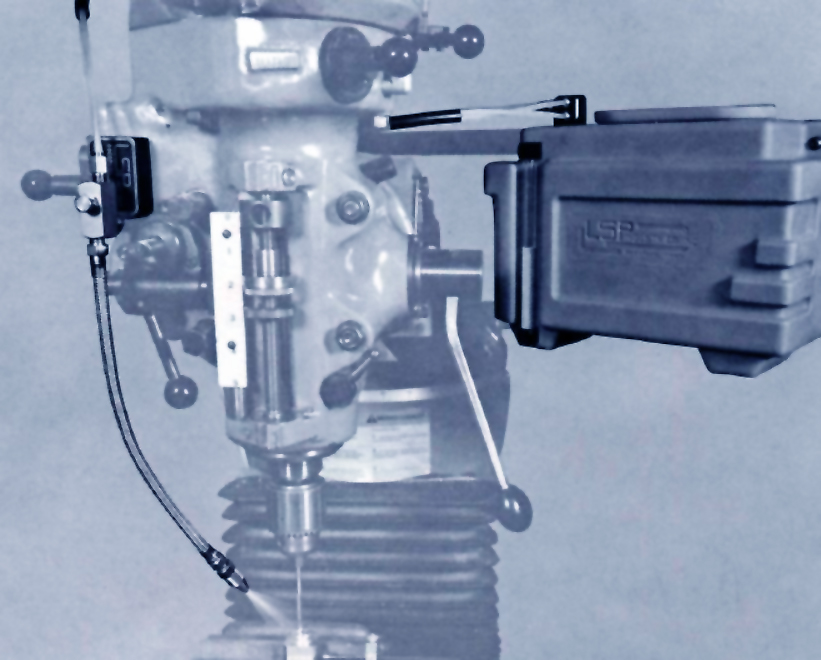

Economy, efficiency, durability and versatility are the trademarks of the LSP Mist Coolant Systems. The LSP Mist Coolant System efficiently dissipates heat during HEAVY, high-speed cutting tool operations. The combination of air mixed with a small amount of coolant blows the chips away and the evaporation of the coolant on the hot tool cools the tool down. Whatever your metal removal requirements are, chances are there is a LSP Mist Coolant System that can dramatically improve the quality and productivity of your operation. Simply specify the system you want, select the components you need from our wide array of options and we'll deliver a package designed to meet your exact coolant needs ready for immediate installation. All units can be adapted for automatic or semi-automatic operation by adding an LSP air valve.

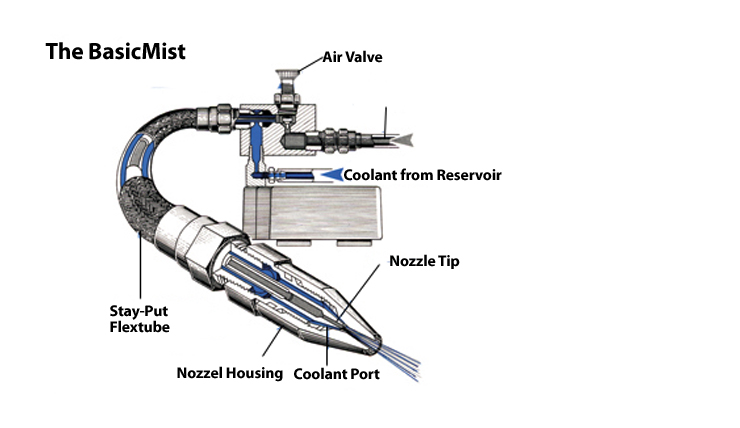

The LSP mist coolant systems use the Venturi principle for operation. When air is introduced to a typical unit, like the M-122 MagnaMist, and the air valve is open, it passes completely through and is released at the nozzle tip. The air stream forms a "Venturi", creating suction that draws coolant from a coolant reservoir to the coolant port where it joins the air to form a mist spray. The force of the spray is easily regulated by adjusting the air valve to control both air volume and velocity. To adjust the coolant volume one has only to turn the nozzle housing.

Mist Coolant
Traditional Mist System
